ACTi B917 30x 1080P PTZ IP Camera Speed Dome

  • ACTi B917 30x 1080P PTZ IP Camera Speed Dome
  • ACTi B916 PTZ IP Camera Diagram

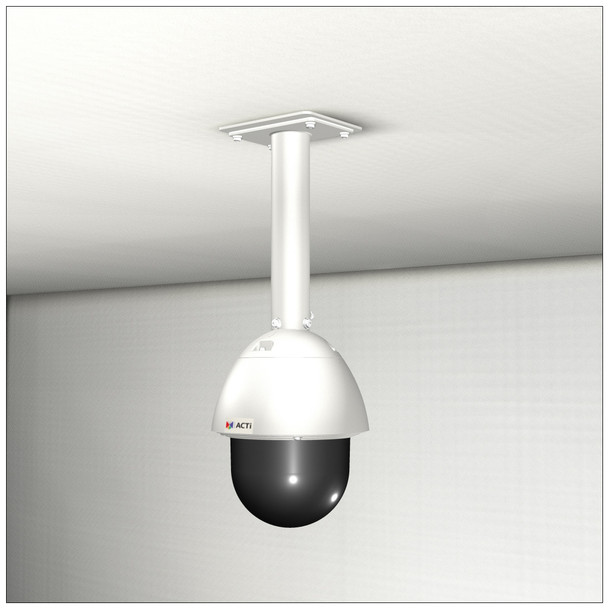

  • ACTi B916 PTZ IP Camera Outdoor Pendant Mount Kit SMAX-0247

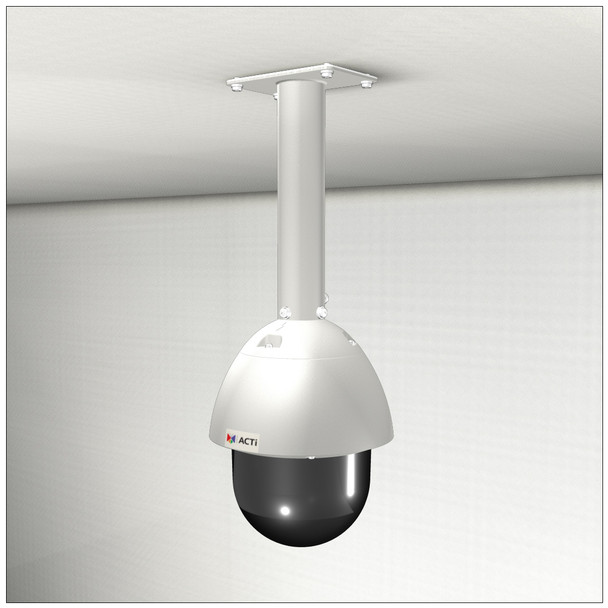

  • ACTi B916 PTZ IP Camera Outdoor Pendant Mount Kit PMAX-0102
  • ACTi B916 PTZ IP Camera Wall Mount Arm Kit PMAX-0305
  • ACTi B916 PTZ IP Camera Wall Mount Gang Box Kit SMAX-0244
  • ACTi B916 PTZ IP Camera NPT adapter pendant mount PMAX-0808

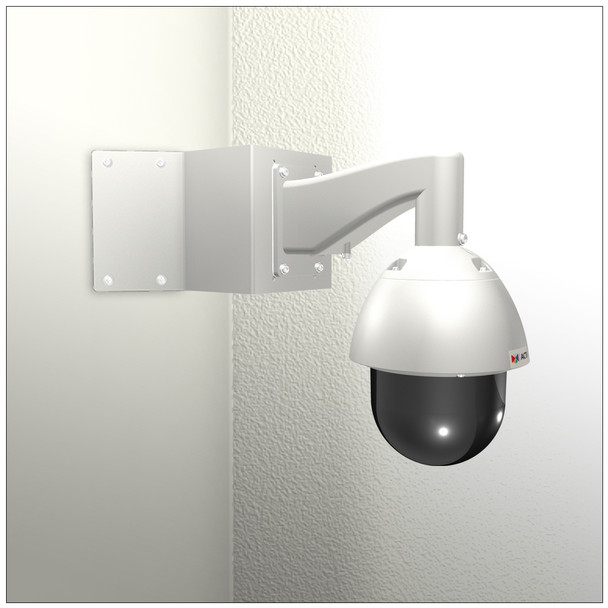

  • ACTi B916 PTZ IP Camera Corner Bracket Wall Arm Mount Kit SMAX-0035
  • ACTi B916 PTZ IP Camera Corner Bracket Wall Mount Kit SMAX-0225
  • ACTi B916 PTZ IP Camera Corner Bracket Gooseneck Mount Kit SMAX-0009

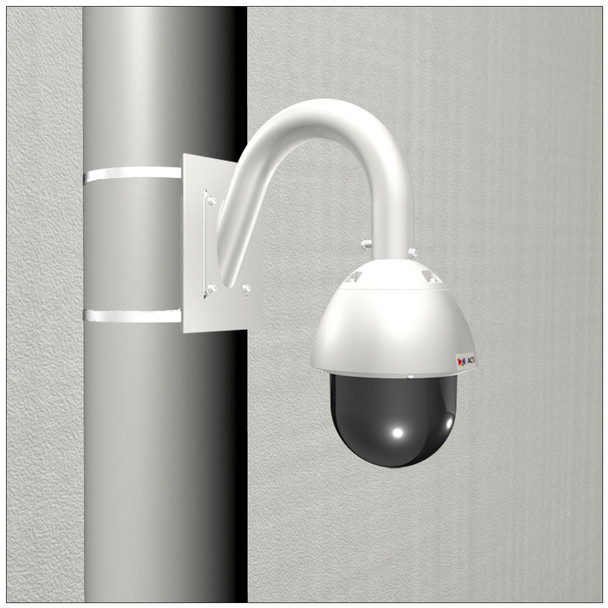

  • ACTi B916 PTZ IP Camera Pole Mount Gooseneck SMAX-0104

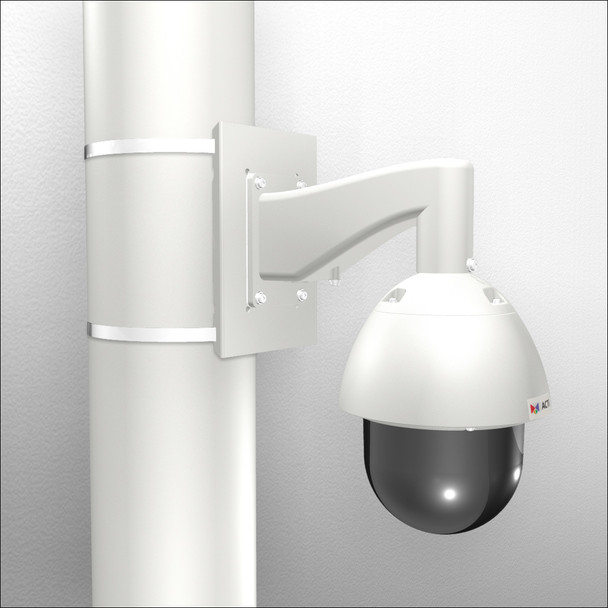

  • ACTi B916 PTZ IP Camera Pole Mount Arm SMAX-0138

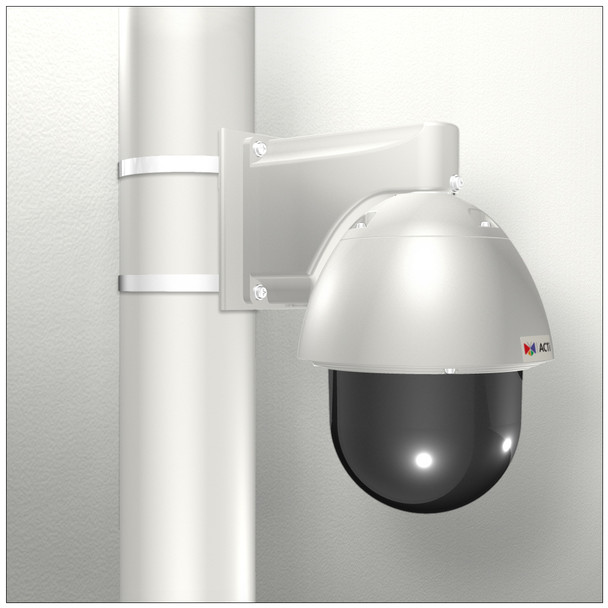

  • ACTi B916 PTZ IP Camera Pole Mount Arm for small pole SMAX-0224 for larger pole SMAX-0250

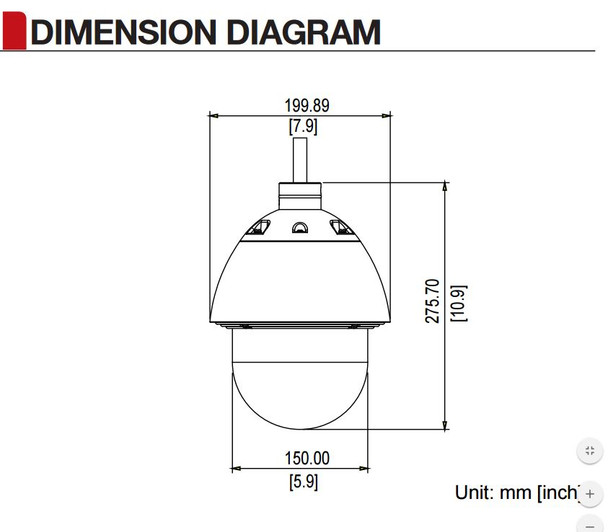

  • ACTi B916 PTZ IP Camera Dimensions
Price:
$2,900.00
SKU:
B917
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

ACTi B917 30x 1080P Speed Dome PTZ IP Camera is a new series of Outdoor HD Pan/Tilt/Zoom Security Cameras for professional projects that demand superb performance plus vast capabilities. The unit is outfitted with a new generation of 2 Megapixel CMOS Image Sensors and delivers enhanced video surveillance with perks like Extreme WDR, 3D DNR, and Superior Low Light Sensitivity (SLLS) to Image Stabilization (DIS). The PTZ camera is loaded with numerous other advantages including a true day/night functions to high frame rate 60fps 1080P, triple streaming and of course multiple codecs like high profile H.264. The added intelligence is generously provided in all directions such as multi-browser support, in-depth array of customized camera settings to truly smart, edge-based Video Analytic algorithms like PTZ Auto Tracking, Line Crossing, Face Detection, Intrusion and more. The ACTi B917 Outdoor HD PTZ IP Camera is an also supported by Free ACTi NVR, CMS and mobile viewing applications. Alternatively the PTZ is easily integrated with 3rd party IP security systems via both a widely supported SDK and the latest ONVIF.

Built-tough, Built-smart the ACTi B917 seemingly has all the best features of a modern Speed Dome PTZ Security Camera. The unit is offers a higher level of weatherproof construction with IP67 ratings, furthermore an IK10 high impact and vandal proof design promise solid protection. Including also a Fan, Heater and Dehumidifier the ACTI B917 Speed Dome PTZ is well constructed for adverse environmental conditions. The unit is equally able to adapt to numerous security system requirements including Two Way Audio, Digital I/O to on-board Micro SDHC or SDXC card slot for stand-alone, all-in-one IP surveillance. Furthermore traditional 24VAC power input to the simplified single cable install with High PoE (IEEE 802.3at) compliance is all provided. A wide range of mounting brackets and adapters including gang box, pendant, wall, corner, and pole, parapet, ceiling or otherwise is available. A powerful 30x Optical Zoom range with high speed, highly accurate Pan, Tilt and Zoom mechanism ensure outstanding PTZ operation. ACTi B917 Speed Dome 2MP PTZ IP Camera is a top tier choice for professional IP surveillance systems of all kinds.

ACTi B917 Speed Dome PTZ Camera Main Features:

  • 2 MegaPixel 1/2.8" Progressive Scan CMOS Image Sensor
  • Effective Pixels 1944(H) X 1224(V) (2.38 MP)
  • Superior Low Light Sensitivity (SLLS)
  • Wide Dynamic Range: Extreme WDR (145 dB)
  • Digital Noise Reduction: 2D + 3D DNR
  • Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE); B/W: 0.05 lux at F1.6 (30 IRE)
  • 30x optical Zoom, Auto Focus, DC Iris, f4.5-135mm (F1.6-F4.4) HFOV: 59.8° - 2.34°
  • 360° endless Pan with extended Tilt Range of -20°~200°
  • Multi-Streaming - triple streams of H.264 (Baseline/ Main/ High profile) or MJPEG
  • Maximum Frame Rate per Resolution: 60 fps at 1920 x 1080 (1080p) or 1280 x 720 (720p), 30 fps at VGA or CIF
  • Image Enhancement: Digital Image Stabilizer, Defogging
  • Privacy Mask: 20 configurable 3D privacy masks
  • Built-in Analytics: Object Based Motion Detection, Tamper, Shock Detection, PTZ Auto Tracking, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering, Face Detection
  • Two Way Audio: Line-in, Line-out
  • Network Protocol & Services: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • Ethernet Port: 1x RJ-45 connector
  • Alarm/Relay I/O: Digital Input/Output 4/2
  • Local Storage: Micro SDHC, Micro SDXC memory card slot (card not included)
  • Environmental Construction: Weatherproof (IP67), Vandal proof (IK10), Built-in Fan, Heater, Dehumidifier
  • Optional Mounts: Gang box, Pendant, Converter for NPT Standard Mount, Wall Mount, Pole Mount, and Corner Mount
  • Operating Temperature: -52°C ~ 60°C (-61.6°F ~ 140°F) for 24VAC, -40°C ~ 60°C (-40°F ~ 140°F) for High PoE
  • Approvals: CE, FCC, IP67, IK10, NEMA 4X, UL (for bundled power adapter)
  • Warranty: 3 Year(s)* (3 months in continuous motion)
  • ONVIF Compliance for Profile S and Profile G
  • Multiple Web Browser Support: IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
  • Power Source: High PoE (IEEE802.3at) 29.4W / 24VAC 68W (With heater controlled by thermostat)
  • Weight: 2500 g (5.51 lbs.)
  • Dimensions: (Φ x H) 200 mm x 276 mm (7.87" x 10.87")

Last Updated August 4, 2016
