ACTi B910 4MP PTZ IP Camera Vandal Dome Mini 10x

  • ACTi B910 4MP PTZ IP Camera Vandal Dome 10x

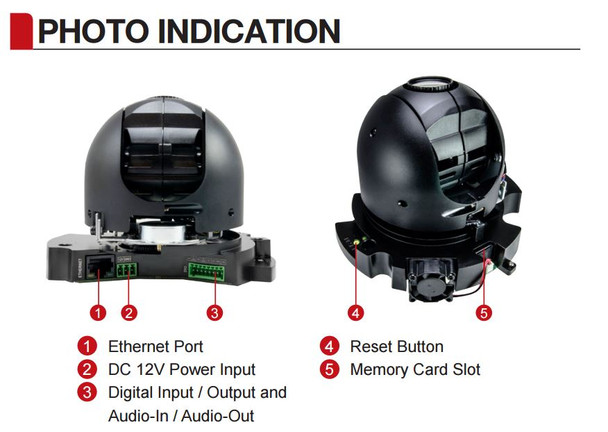

  • ACTi B910 4MP PTZ IP Camera internal diagram

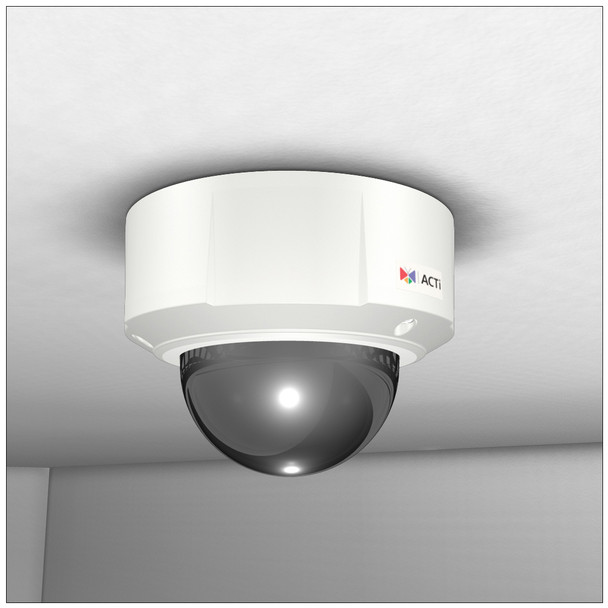

  • ACTi B910 4MP PTZ IP Camera ready to go surface mounting

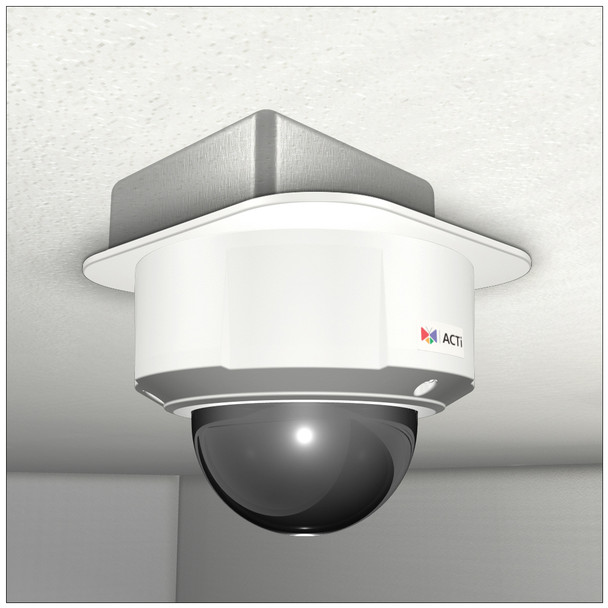

  • ACTi B910 4MP PTZ IP Camera optional gang box mount kit
  • ACTi B910 4MP PTZ IP Camera surface mount flush kit
  • ACTi B910 4MP PTZ IP Camera wall mount
  • ACTi B910 4MP PTZ IP Camera gang box wall mount
  • ACTi B910 4MP PTZ IP Camera Wall Mount Arm Kit SMAX-0150
  • ACTi B910 4MP PTZ IP Camera Wall Mount Gooseneck Kit SMAX-0065

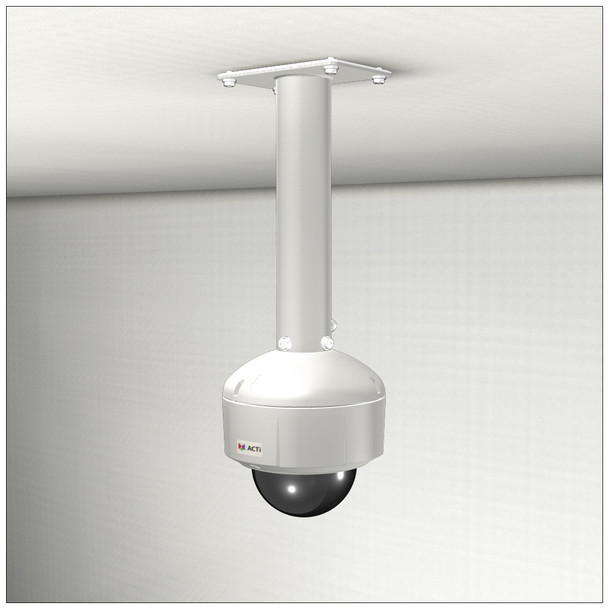

  • ACTi B910 4MP PTZ IP Camera Ceiling Pendant Kit SMAX-0051

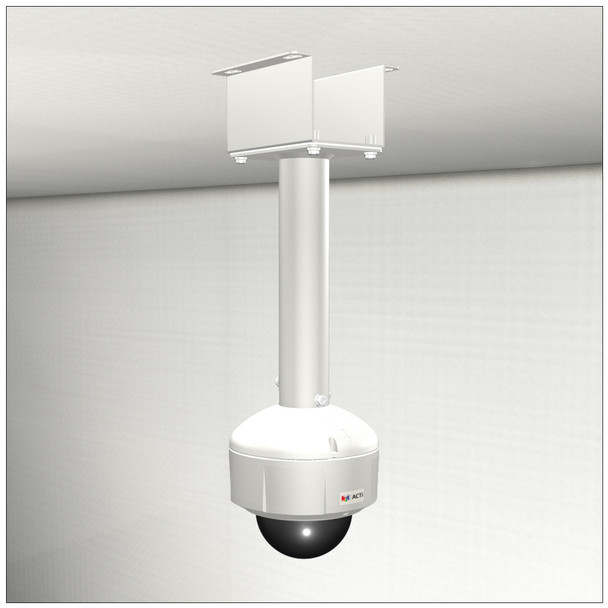

  • ACTi B910 4MP PTZ IP Camera Ceiling Pendant Kit plus bracket SMAX-0053

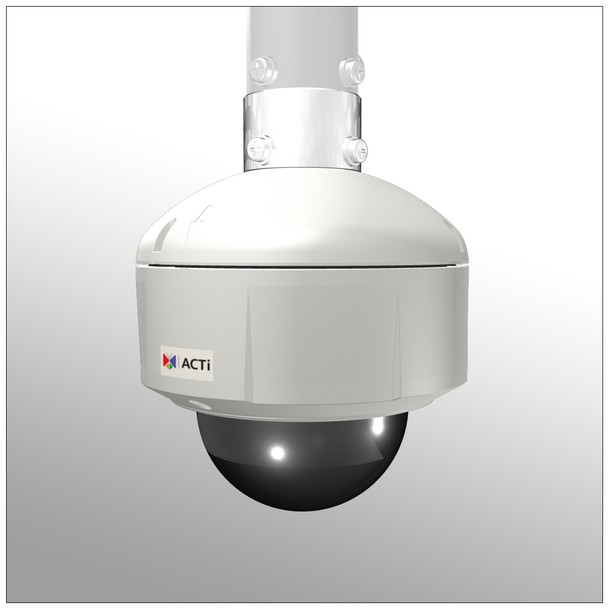

  • ACTi B910 4MP PTZ IP Camera NPT Pipe Adapter Pendant Kit SMAX-0152
  • ACTi B910 4MP PTZ IP Camera horizontal pendant pipe or pole mount kit SMAX-0102

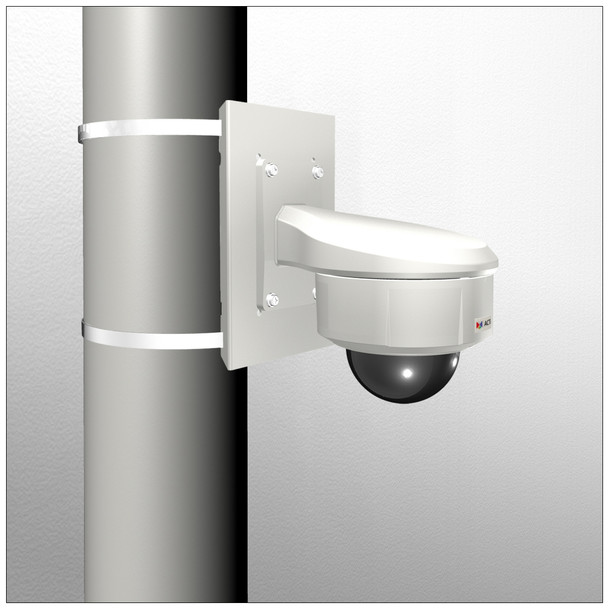

  • ACTi B910 4MP PTZ IP Camera Pole Mount Kit SMAX-0155
  • ACTi B910 4MP PTZ IP Camera Pole Mount Adapter Kit SMAX-0252
  • ACTi B910 4MP PTZ IP Camera Pole Mount Pendant Arm Adapter Kit SMAX-0041

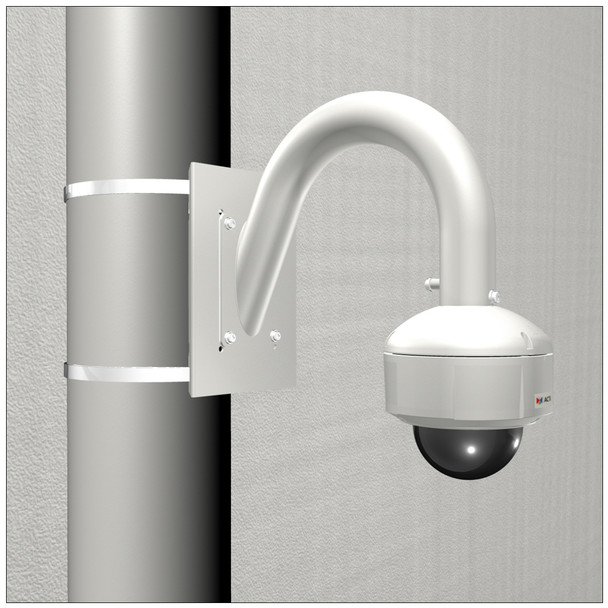

  • ACTi B910 4MP PTZ IP Camera Pole Mount Gooseneck Adapter Kit
  • ACTi B910 4MP PTZ IP Camera Corner Wall Mount Kit SMAX-0157
  • ACTi B910 4MP PTZ IP Camera Corner Wall Mount Pendant Arm Kit SMAX-0041
  • Image 20
  • Image 21

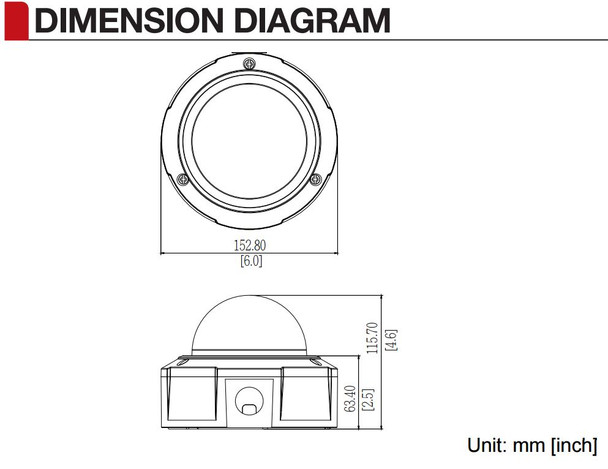

  • ACTi B910 4MP Mini PTZ IP Camera Dimensions
Price:
$892.00
SKU:
B910
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

ACTi B910 4MP Vandal Dome Mini 10x PTZ IP Camera is a new addition to ACTi's unique line of rugged and compact IP PTZ Security Cameras. The unit includes the latest 4 Megapixel Image Sensor and offers a full 4 Megapixel image at up to 15fps real-motion. Alternatively lower resolutions such as 1080p, 720P or SVGA can be delivered in real-time at up to 30fps. Multiple H.264 codec or MJPEG can be selected including simultaneous dual streaming for flexible video management. The ACTi B910 provides professional Pan/Tilt/Zoom characteristics including a 10x optical zoom paired with wide pan and tilt range plus quick manual or automated movement promise impressive results. Ready for low light applications the PTZ is IR sensitive and offers low lux surveillance to 0.05 in monochrome mode. Digital Noise Reduction and Advanced WDR further help ensure vividly clear imaging in even adverse lighting conditions.

ACTi B910 4MP Vandal Mini PTZ IP Camera is an extremely tough unit boasting IP67 weatherproof ratings and an IK10 High Impact Dome construction equally sized to common full featured vandal domes. The B910 ACTi Mini PTZ security camera even has a built-in fan and heater allowing an extended temperature range. The device is further equipped with all sorts of innovative design qualities including diverse IT protocol and even third party PTZ protocol support. Integration capabilities are rich including SDK, ONVIF compliance to URL commands while independent IP Surveillance including event detection, event triggers, event notifications and local Micro SDHC (or SDXC) card slot for recording is all possible. Digital I/O and Two Way Audio just extend possibilities even further. Easy power up via 12vdc or standard PoE (IEEE 802.3af) and a huge selection of optional mounting accessories ensure super flexible install abilities.

ACTI B910 Mini PTZ main features:

  • 4 MegaPixel 1/3" Progressive Scan CMOS Sensor
  • Effective Pixels: 2688(H) X 1520(V) (4.09 MP)
  • True Day/Night with low light Color: 0.1 lux at F1.6 (30 IRE); B/W: 0.05 lux at F1.6 (30 IRE)
  • 10x optical Zoom, DC iris, Auto focus, f4.9-49mm, F1.6-F3.0 (HFOV) 54.13° - 6.65°
  • Pan Range of -175°~175° and Tilt Range of 0°~180° (with E-flip)
  • Maximum Frame Rate at Resolution: 15fps at 4MP - 2688 x 1520 or 2560 x 1440, 30fps at 1080p, 720p, SVGA and VGA, 15 fps at CIF
  • Multi-Streaming, dual streams of H.264 (Baseline/ Main/ High profile), MJPEG
  • Wide Dynamic Range: Basic WDR (70 dB) and Digital Noise Reduction: 2D + 3D DNR
  • Image Enhancement: White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
  • Privacy Mask: 4 configurable regions for each of 17 preset points
  • Image Orientation: Flip, Mirror
  • Two Way Audio I/O: Line-in, Line-out
  • Network Protocol & Services: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • Alarm/Relay: Digital I/O 1/1
  • Event Detection, Event Trigger, Event Notifications including Snapshot or Video Upload
  • Local Storage: Micro SDHC, Micro SDXC memory card slot (card not included)
  • Power Source: PoE Class 3 (IEEE802.3af): Power Draw: 11.2 W (PoE, heater and fan on) or 12VDC
  • Environmental Construction: Weatherproof (IP67), Vandal proof (IK10)
  • Mount Type: Surface, Pendant, Wall Mount, Corner Mount, Pole Mount, Flush, Gang box, Adapter to NPT Standard Mount
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Approvals: CE, FCC, IP67, NEMA 4X, IK10, UL (for optional PoE injector and power adapter)
  • Warranty: 3 Year(s)* (3 months in continuous motion*)
  • Software Development Kit (SDK) and ONVIF Compliant Profile S, Profile G (To be available with firmware upgrade)
  • Web Browser: IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
  • Power Source / Consumption: PoE Class 3 (IEEE802.3af) / 11.2 W or 12VDC / 7.8 W (Draws w/built-in heater and fan on)
  • Weight: 1306 g (2.88 lbs.)
  • Dimensions: (Φ x H): 153mm x 115mm (6" x 4.5")

Last Updated: August 6, 2016
